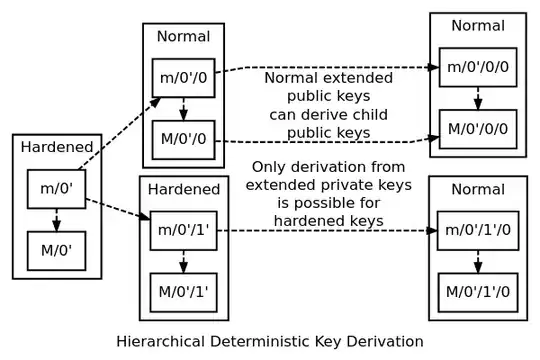

Is BitCoin developer page's HD Wallet image wrong

Asked Mar 14 '21 at 02:09

Active Mar 19 '21 at 21:06

Viewed 58 times

What I understand is that M/0'/1' can derive M/0'/1'/0. M/0'/1' can't derive M/0'/1'/0'.

To derive M/0'/1'/0, we don't need m/0'/1'. To derive M/0'/1'/0', we need m/0'/1'

Am I right? Or Is the Image right?

edited Mar 19 '21 at 21:06

Murch

asked Mar 14 '21 at 02:09

juhyung park

Everything you said sounds correct, but I don't see what is wrong with the diagram. – Pieter Wuille Mar 14 '21 at 02:16
@PieterWuille The diagram does not draw an arrow from `M/0'/1'` to `M/0'/1'/0`. There should be an arrow there. – juhyung park Mar 14 '21 at 02:18
2

You are correct. – Pieter Wuille Mar 14 '21 at 02:26

0 Answers0
